DS-II M Electric Operating Table

DS-Ⅱ M electric operating table is designed for wide variety of surgical operations, including general operation, obstetrics, urology, ENT, endoscopic, neurosurgery, orthopedics, etc.
Availability:
Quantity:
  • DS-ⅡM

  • PAX

Product Description
Overview
Country of origin Shanghai, China
HS Code 9405409000
Brand Name PAX
Model Number DS-ⅡM
Power Source Electric
Power Supply 100V-240V
Warranty 1 year
Material Metal, Aluminum alloy
Service Life 10 years
Quality Certification CE, FDA, ISO13485
Instrument classification Class I
Safety standard EN 149 -2001+A1-2009
Function Medical Table
Application Variety of surgical operations, including general operation, obstetrics, urology, ENT, endoscopic, neurosurgery, orthopedics, etc
OEM Unacceptable
Feature Table frame, side rails and accessories all are made of stainless steel.
Wide sliding range of table top: 350mm, meet the requirement of X-ray C-arm
Memory foam mattress—offer comfort for patients and prevent pressure ulcers
Both hand control and control panel in column (back-up control system) are included
2 power supply systems: mains power; battery (table can be used when power failure)
Automatic 0-position in emergency situations
Has electric brake casters
Side rail with European or USA standard
Transport Package Carton Box, Wooden Crate
Product Description

- This operating table is electro-mechanical operating table.

- Table frame, side rails and accessories all are made of stainless steel.

- Wide sliding range of table top: 350mm, meet the requirement of X-ray C-arm

- Memory foam mattress—offer comfort for patients and prevent pressure ulcers

- Both hand control and control panel in column (back-up control system) are included

- 2 power supply systems: mains power; battery (table can be used when power failure)

- Automatic 0-position in emergency situations

- Has electric brake casters

- Side rail with European or USA standard


Technical Data

- Height:    730-1030mm

- Length:    ≥2100mm

- Width:     ≥540mm

- Lateral tilt:   -20 ° / +20 °

- Trendelenburg/ Anti Trendelenburg:   25 °/ 30 °

- Back section:   up≥75°/ down≥10°

- Head section:   up≥30°/ down≥45°, detachable

- Leg section:    up≥10°/ down≥90°, open≥180°, detachable

- Flex / Reflex :   Up≥75°/ down≥190°

- Sliding:      ≥350 mm

- Kidney Bridge Elevation:      ≥120

- Safety patient working load:    ≥200kg

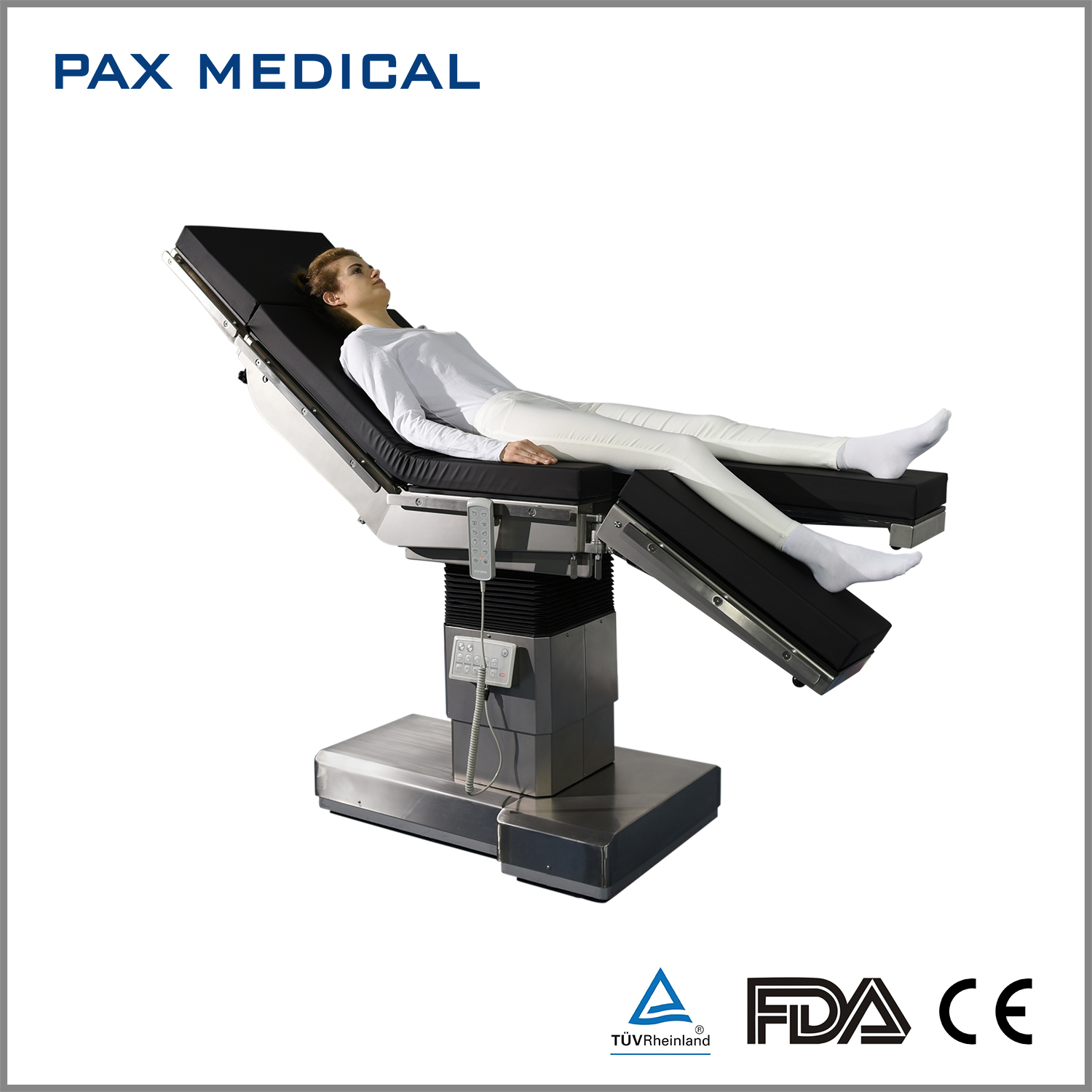

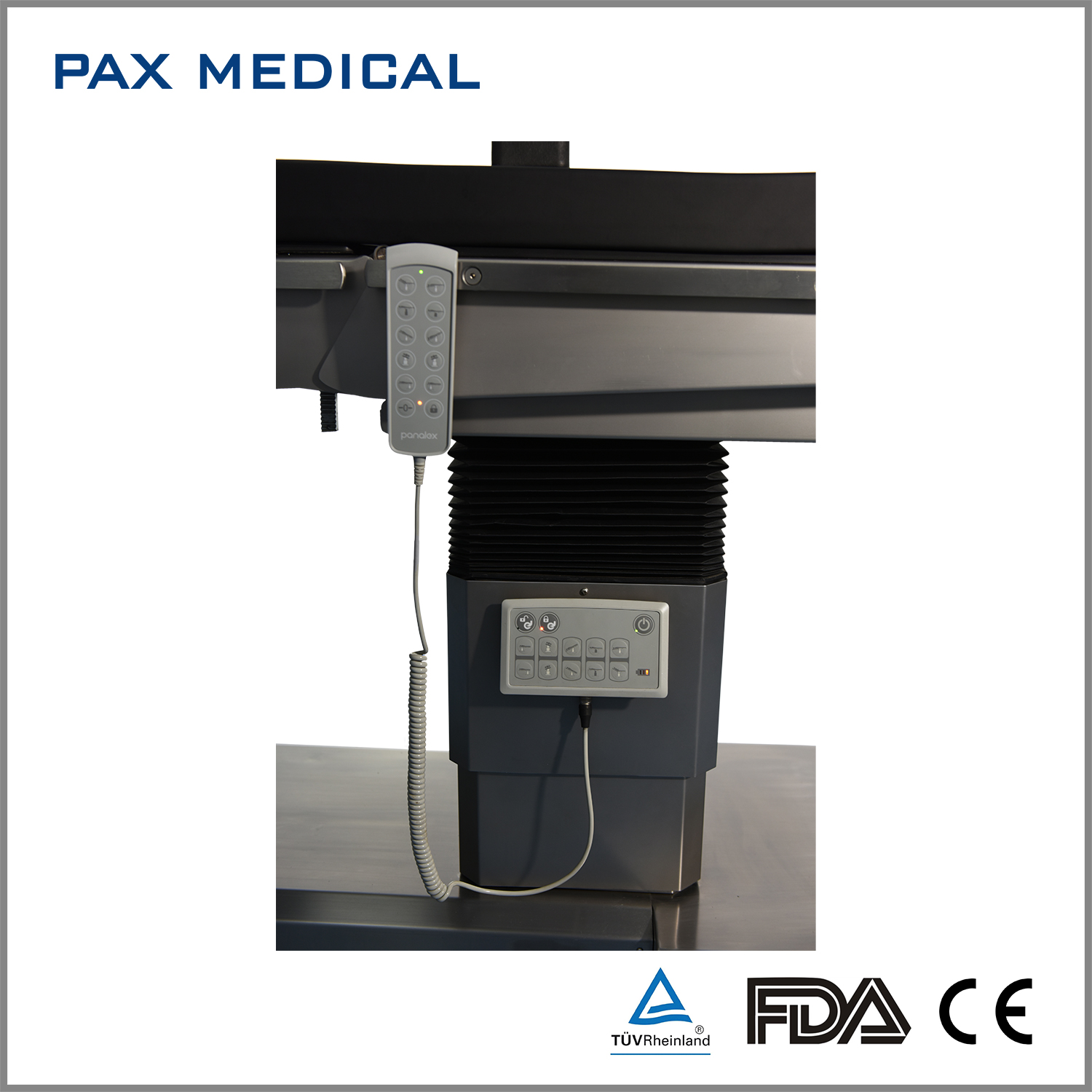

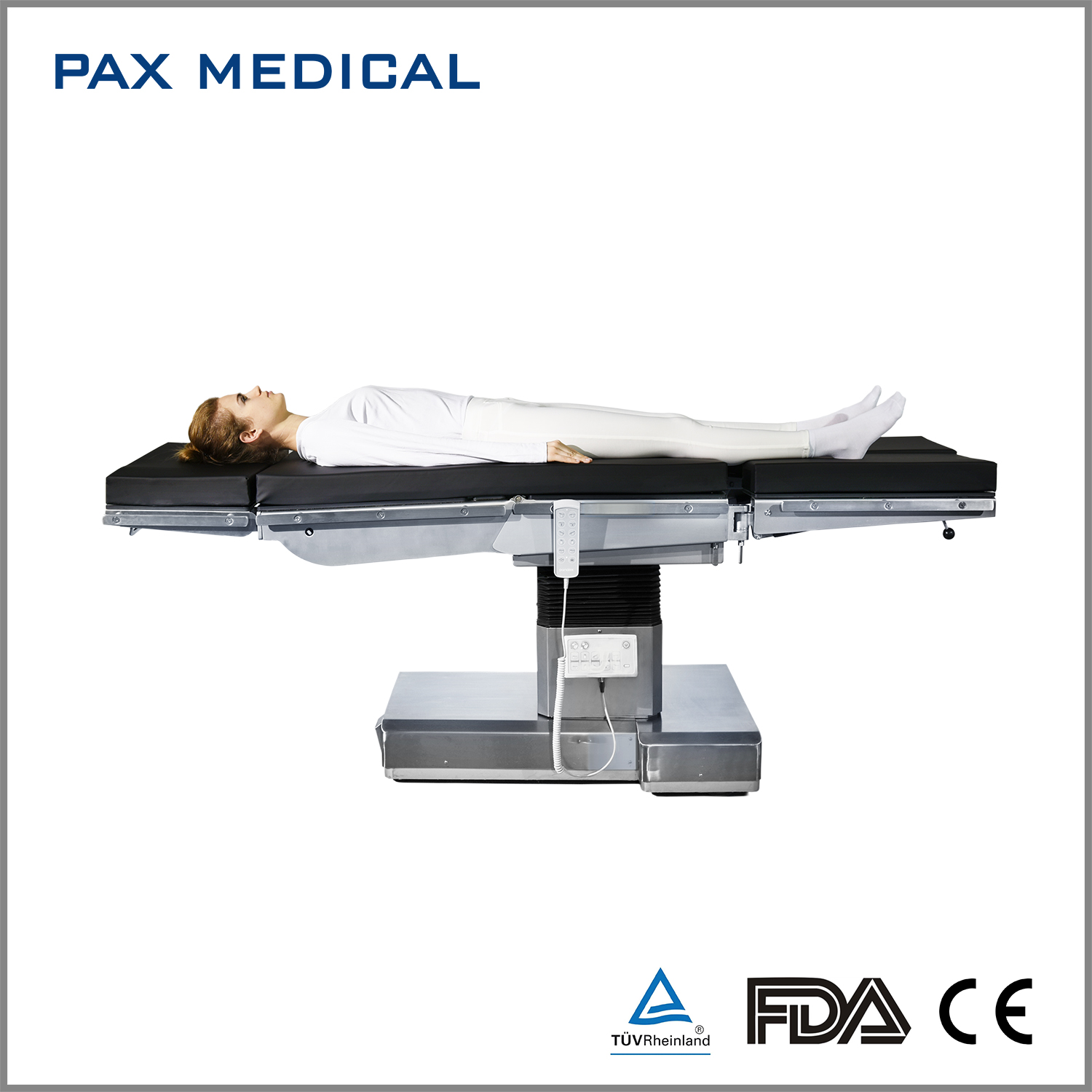

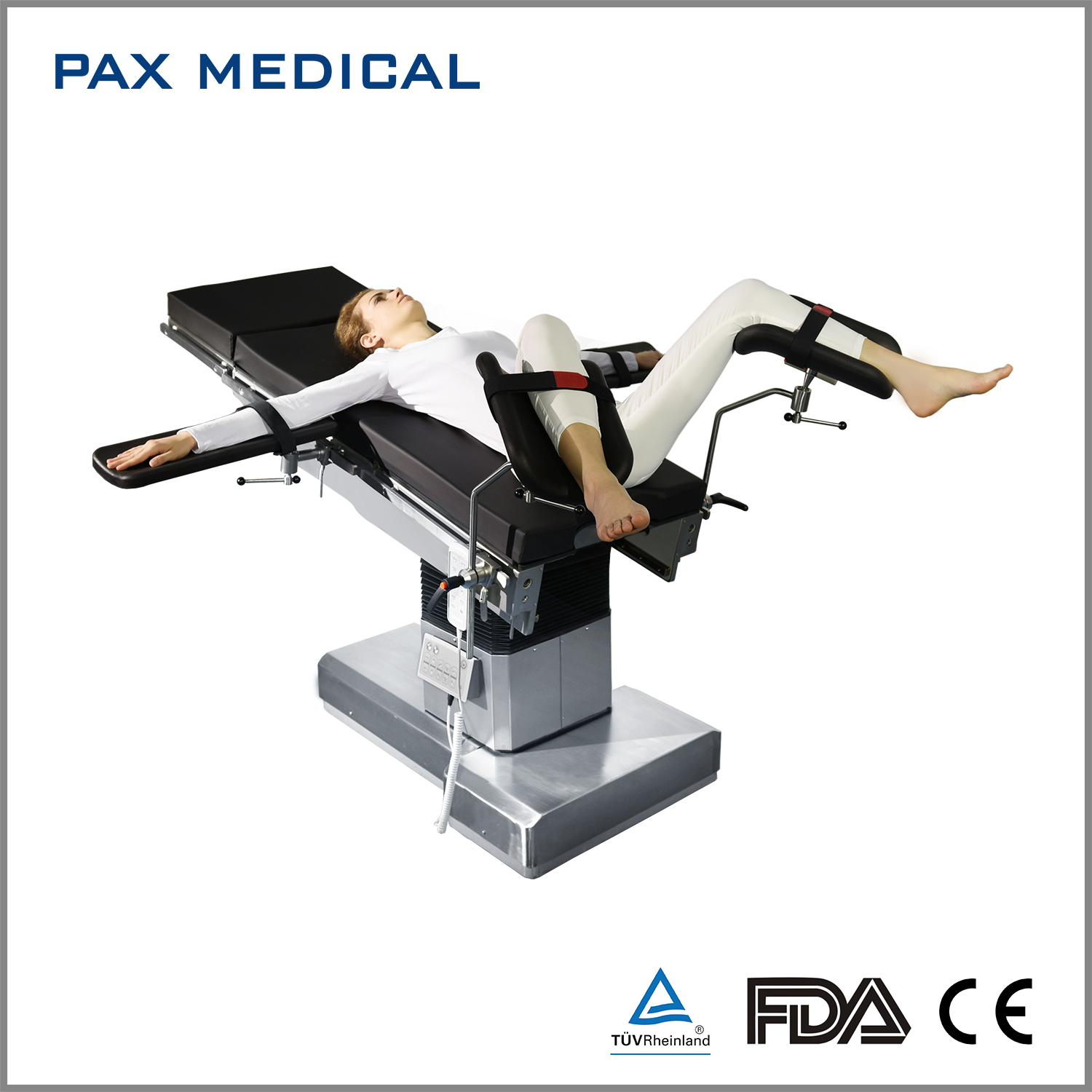

DS-II-M-Operating-Table01 DS-II-M-Operating-Table05 DS-II-M-Operating-Table04 DS-II-M-Operating-Table02 DS-II-M-Operating-Table08 DS-II-M-Operating-Table07 DS-II-M电动手术床 DS-II-M-Operating-Table
Packaging & Shipping

b0c1f336b8ea5f314d76c6b6877d4f7

Our Services

1.We support customization

2.24-hour manual customer service

3.Online Technical support

4.We support OEM

5.Answer your questions one to one online

Company Information

83771755ff03eb1ab5bc91d02e66aa823909cb87a6ed3d9fc96415d943f6da
FAQ

Q1:How soon can we get the price?
A:Usually 30 Minutes, not more than 12 hours at latest.

Q2:When can you ship the goods?
A:Usually 8-10 Business Day After Received Your Payment

Q3: What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q4: What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5:How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
