Disposable Access Platform for Laparoscopic Instruments

It is suitable for minimally invasive single-port laparoscopic surgery, and is used as a channel for surgical
endoscopic, forceps, scissors and other instruments to enter and exit the incision and surgical operation.
Availability:
Quantity:
  • "WPGA-A3-5/5/15 WPGA-A4-5/5/15 WPGA-B1-5/5/15/15 WPGA-B2-5/5/15/15 WPGA-F1-5/5/12/12 WPGA-H2-5/5/12/12"

  • WEIPU

Product Description
Overview
Country of origin Changzhou, Jiangsu,China
Brand WEIPU
Model Number WPGA-A3-5/5/15
WPGA-A4-5/5/15
WPGA-B1-5/5/15/15
WPGA-B2-5/5/15/15
WPGA-F1-5/5/12/12
WPGA-H2-5/5/12/12
Power Source Manual
Disinfection type ETHYLENE OXIDE
Warranty 1year
After-sale Service Online technical support
Material Porous cover, protective sleeve retaining ring, B-type incision protective sleeve, A-type puncture cannula: silicone, Outer ring, insertion ring, pull ring, middle ring, pull belt, channel: TPU Protective sleeve fixing ring, porous cover fixing parts: ABS,
Expander: PC
Shelf Life 3years
Quality Certification CE& ISO13485
Instrument classification Class II
Safety standard YY
Application Suitable for minimally invasive single-port laparoscopic surgery, and is used as a channel for surgical endoscopic, forceps, scissors and other instruments to enter and exit the incision and surgical operation.
OEM Supported
Function Surgical endoscopic, forceps, scissors and other instruments to enter and exit the incision and surgical operation.
Packaging Blister
Product Description

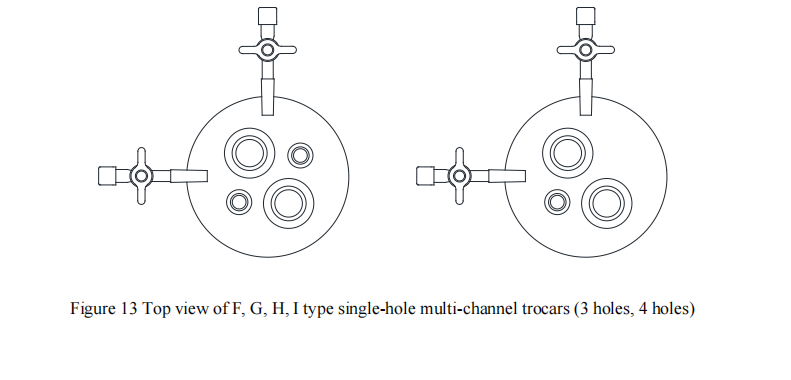

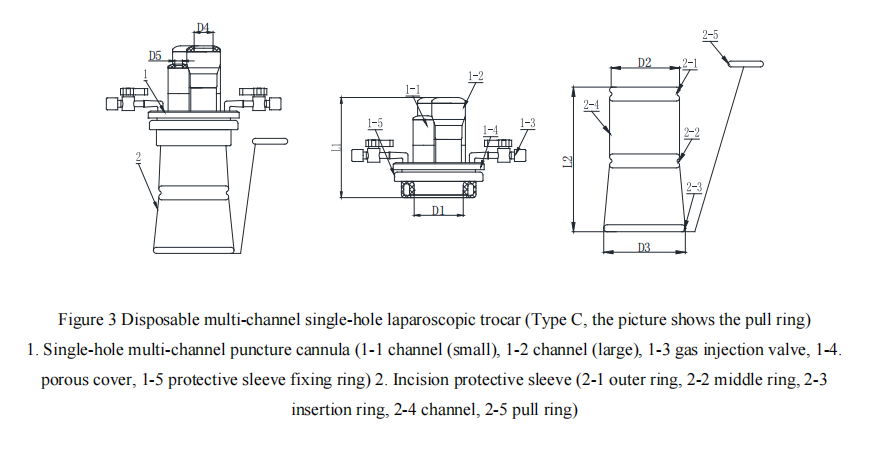

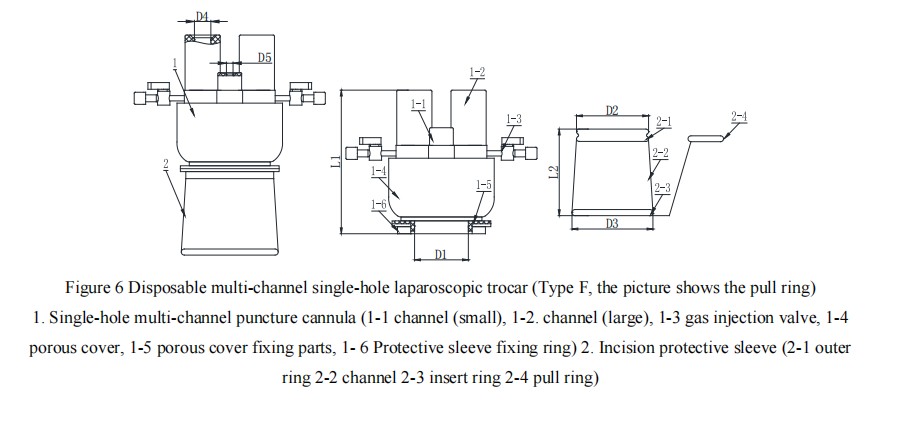

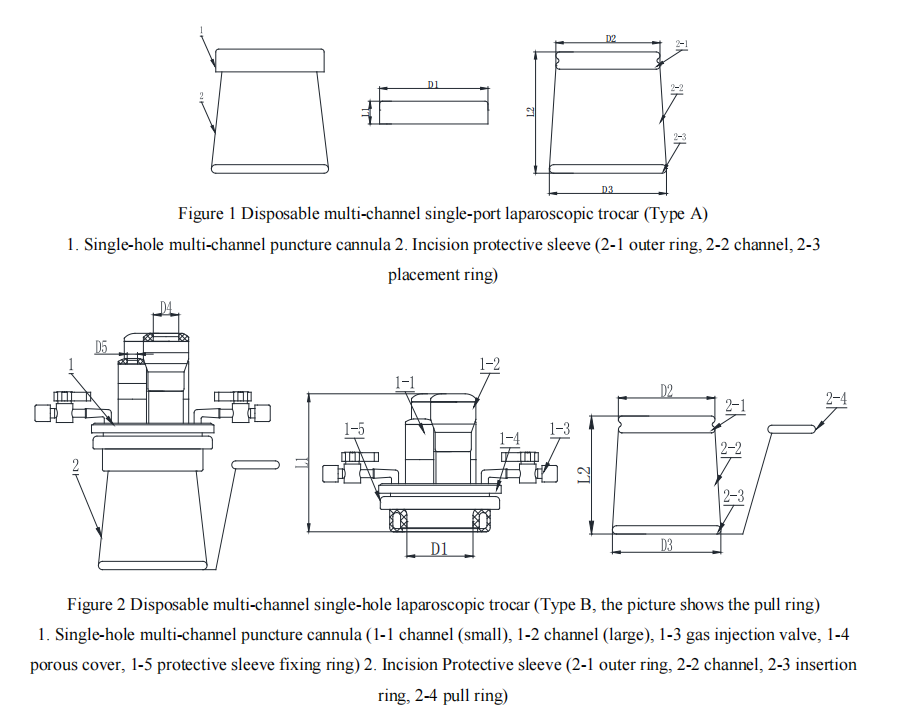

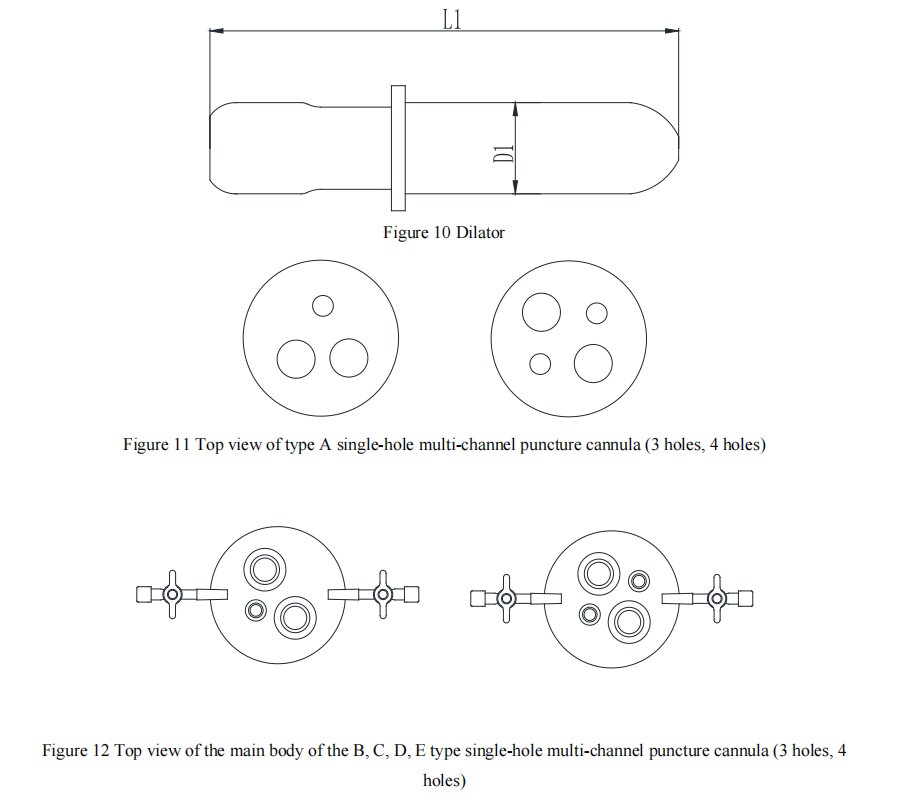

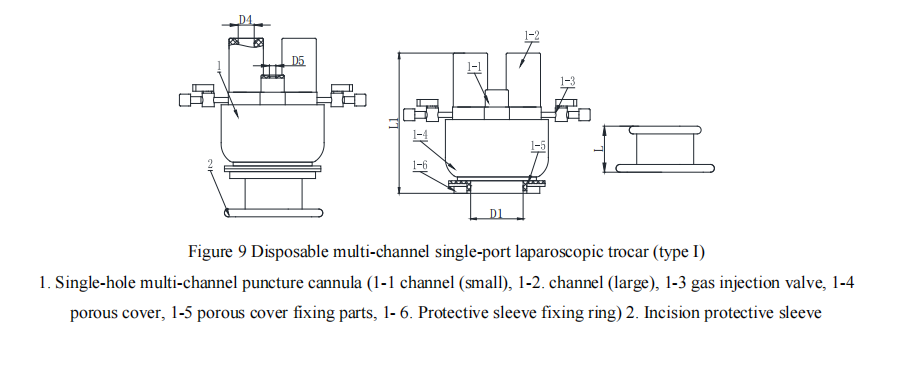

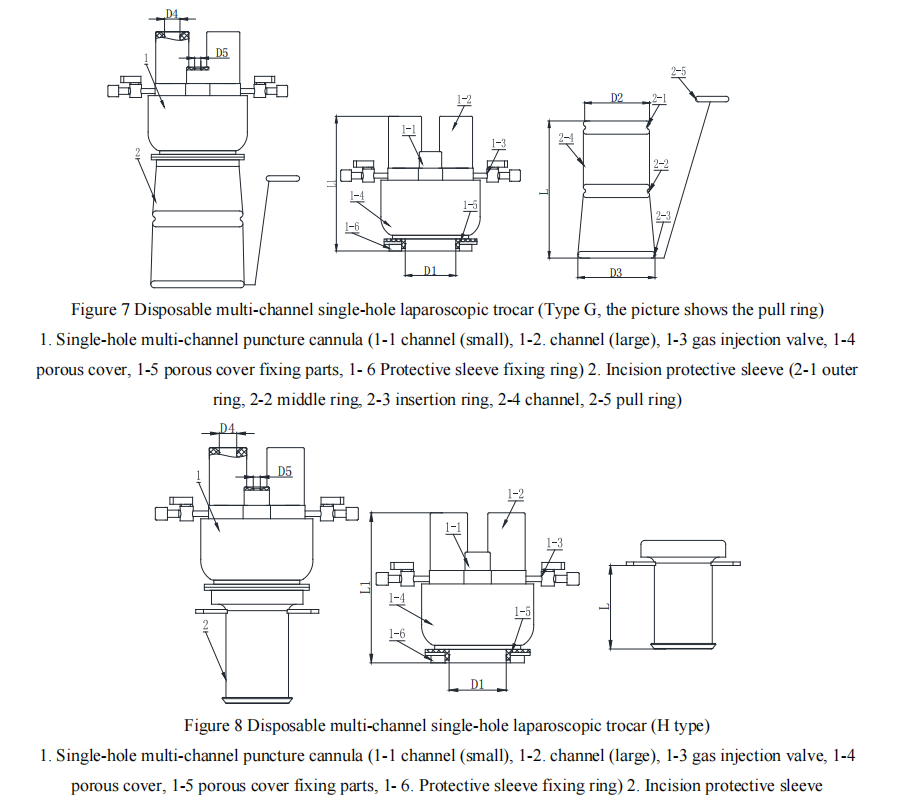

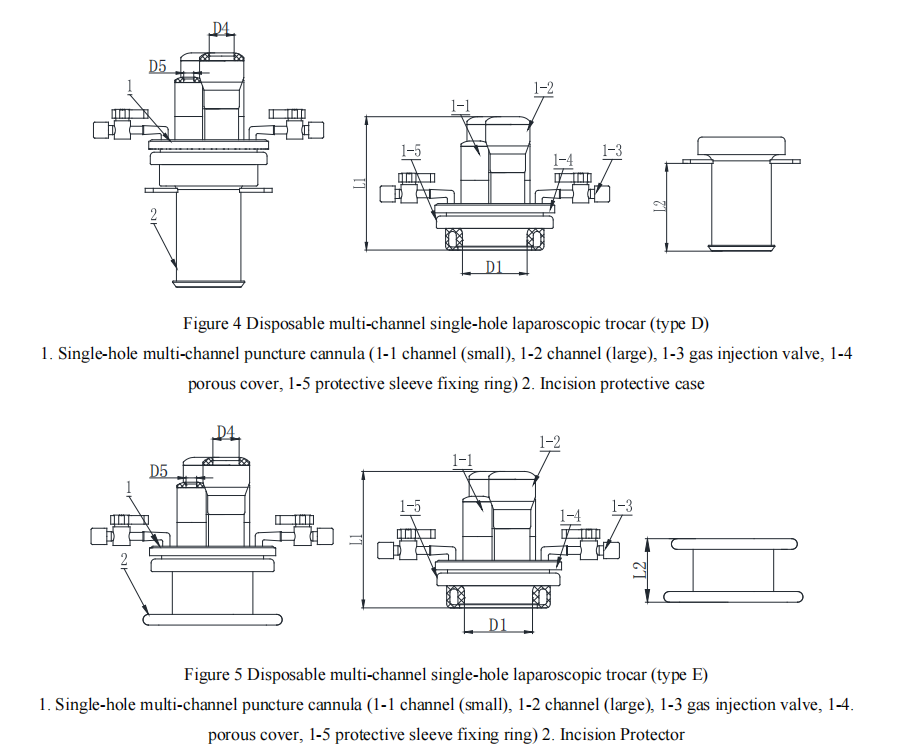

The disposable multi-channel single-hole laparoscopic trocar is composed of a single-hole multi-channel puncture  cannula and an incision protective sleeve; the A-type single-hole multi-channel puncture cannula is a whole, B, C, D,  E, F, G, H, I type single-hole multi-channel puncture cannula is composed of channel, gas injection valve, porous  cover/porous cover fixing piece, protective sleeve fixing ring; according to different product forms, the products are divided into A, B, C, D, E , F, G, H, I, a total of nine specifications; the product is provided in a sterile state, sterilized  by ethylene oxide, and can be used for one-time use.

91988f097ab2e3329b252fc54fdbb83 ebb80277a5f13f1b78ff3347e02c340 e3adee57b802573d1413f0b730c8da2 70b2b069bc777d21583ddb161192dfb 050aee8434677aa0a6d7023e35f7bbe 9a0e79f2c4de1f0a0fc54c811eb1821 72d15e108ef0dafc891299271a0bf66 b25be2cfb93cfb1f088030d8743d08f
Packaging & Shipping

b0c1f336b8ea5f314d76c6b6877d4f7

Our Services

1.We support customization

2.24-hour manual customer service

3.Online Technical support

4.We support OEM

5.Answer your questions one to one online

Company Information

83771755ff03eb1ab5bc91d02e66aa823909cb87a6ed3d9fc96415d943f6da

FAQ

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 30 mins.

2. Can we print our logo/website/company name on products?

Yes, we offer OEM and ODM services.

3. What's the lead time for regular order?

After you place a order,the production handling time is about 7-30 days.

4. How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample, we will provide you sample for free, as long as you afford the express freight.

5. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
